6090 6012 6015 CNC Router
Time：2018-02-10 12:20:33
Application
Furniture: doors, cabinets, tables and chars, and so son
Musical instrument: Guitar, loudspeaker box, and so on.
Arts and crafts: woodcarving,gift boxes, Jewelry box, and so on
Specification
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 600x900x150mm |
2 | Table Size | 600×900mm |
3 | X,Y,Z Traveling Positioning accuracy | 0.03 |
4 | X,Y,Z Re positioning Positioning accuracy | 0.05mm |
5 | Lathe Structure | Welded Structure |
6 | X, Y,Z Structure | Ball screw and Hiwin linear square rail |
7 | Table | T-slot |
8 | Consume power | ≤3Kw |
9 | Speed | 0-32000mm/min |
10 | Working Speed | 0-20000mm/min |
11 | Spindle Power Motor | 1500W |
12 | Spindle Speed | 0-24000RPM |
13 | Working Mode | Stepper |
14 | Working Voltage | 220V/380V/110V |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | Nc studio/Mach3 System/DSP system |
17 | Interface | USB |
18 | Flash Memory | 128M |
19 | Collet | ER16 |
20 | X,Y Working accuracy | <0.01mm |
22 | Running Circumstance | Temperature: 0C-45C |
23 | Net Weight | 600KG |
24 | Gross Weight | 650KG |

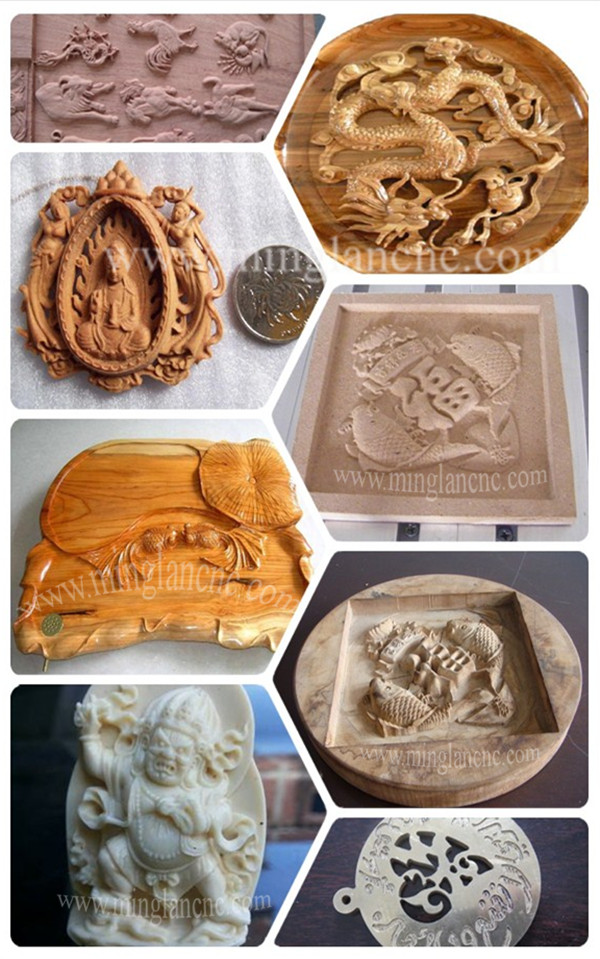

Samples: |
