Standard shape CO2 laser marking machine
Time：2018-02-07 20:31:21
Standard shape CO2 laser marking machine
1. Applicable Materials:
This Co2 Laser Marker Machines can be used in wood, paper, leather, cloth. Plexiglass, epoxy, acrylic, plastic, ucsaturated polyester resin and other non-metal materials
2. Applicable Industry:
This series Co2 Laser Markers Machine is widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online marking.
3. Feature:
A.Suitable for marking a variety of material ,marking clear and beautiful,permanently maintain,quick installation,easy maintenance
B.Fast marking speed,inexpensive tag
C.High reliability,long continuous working time,marking clear and complete
D.The software is compatible with multiple formats DXF,PLT,BMP,AL,JPG
4. Specifications:
Machine Type | CO2-30W |
Laser Output Power | USA Synrad vi30 |
Output power | 25W |
Power stability(from cold start)guaranteed | +/-5% |
Laser beam quality | M2<1.2 |
Laser beam diameter | 2.5mm |
Wavelength | 10.20-10.30um |
Control system | EZCAD work with win7/8/10 |
Focus method | Double red dots |
Cooling type | Air cooling |
Standard Working Area: | 110mm×110 mm |
Aperture size | 16mm |
Linearity | 99.9% |
Long term drift over 8 hours | <0.5urad |
Repeated Accuracy: | ≦8urad |
Line Width: | ≥0.015mm |
Power Supply: | 220V/50HZ |

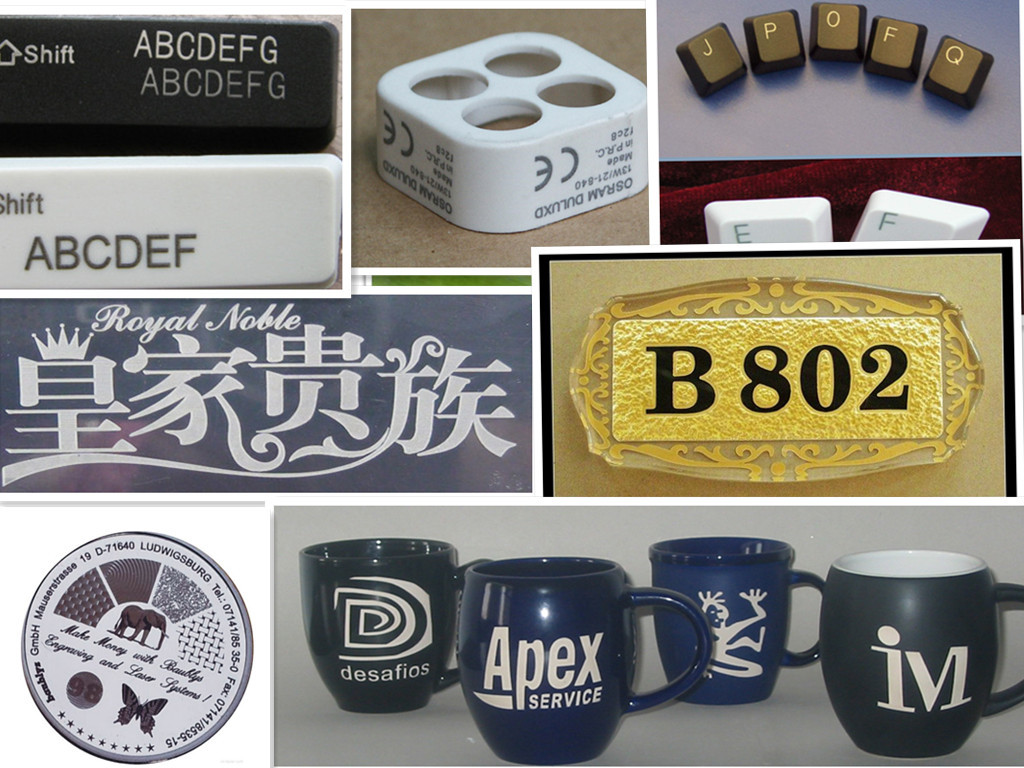

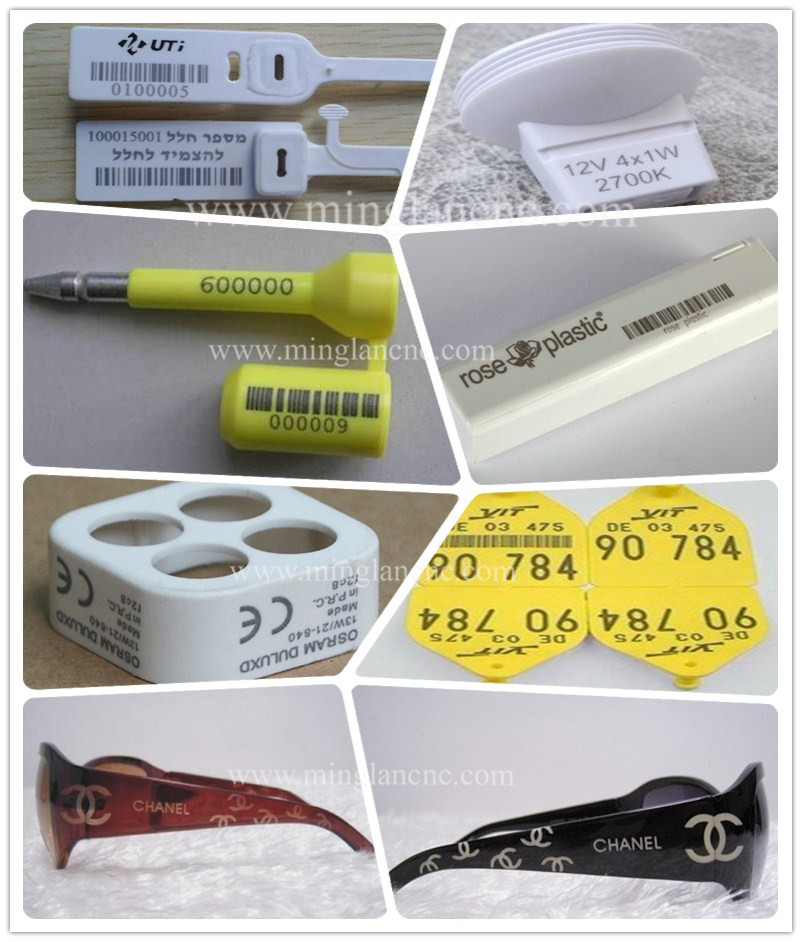

5. Samples photos:
