1325 1530 CNC Plasma Sheet Cutting Machine
Time：2018-02-12 18:40:59
技术参数
TECHNICAL PARAMETERS
加工面积 | Working area | 1300*1200mm | 1300*2500mm | 1500*3000mm |
圆管直径 | Diameter of tube | 50-500mm | ||
加工材料 | Processing material | 铁板、铝板、镀锌板、白钢板、钛金板、圆管 Iron, aluminum, galvanized sheet, white steel, titanium plate, pipe | ||
加工厚度 | Cutting thickness | 0.5-20mm | ||
切割速度 | Cutting speed | 0-1000mm/min | ||
输入功率 | Input power | 8.5KW | ||
电压 | Voltage | 3相380V/ 3 Phase 380V | ||
电源频率 | Power frequency | 50HZ | ||
等离子电流 | Plasma power | LGK-63A,100A, 120A,160A,200A, 300A, 400A, USA Hypertherm --45A, 65A,85A,105A,125A,200A | ||
件传输方式 | File transfer | USB接口 / USB interface | ||
工作方式 | Working mode | 非接触式引弧 Untouched arc striking | ||

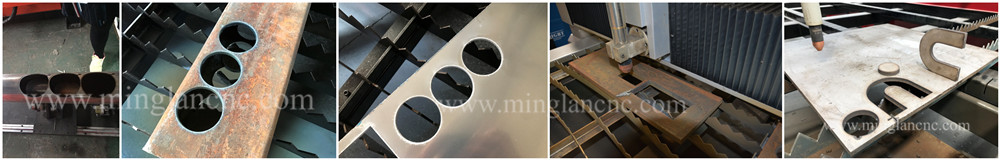

Sample:
