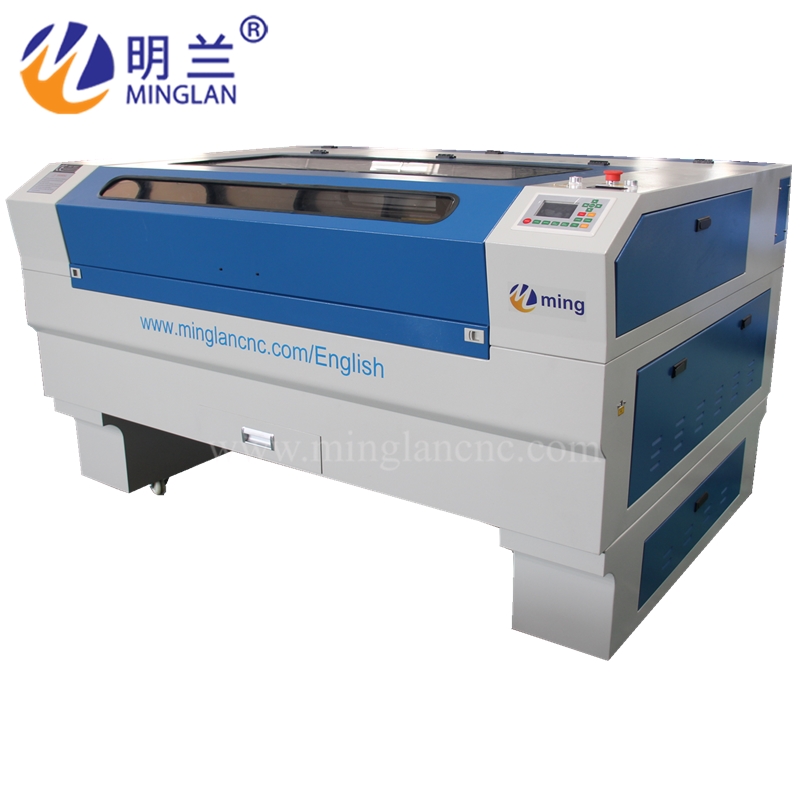

ML-1814J cnc laser cutting and engraving machine
Time：2018-02-10 12:06:50
Applicable Industries:
Advantisement, arts and crafts, shoes, toy, garments, model, construction industry and so on.
Applicable Materials:
Nonmetal materials such as double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber,
plastic, garments, paper, leather, marble, granite, tiles and etc..
Specification:
NO. | Model | ML-1814J |
1 | Laser medium | CO2 |
2 | Working area | 1800* 1400mm |
3 | Working table | Blade table or Honeycombe table |
4 | Laser power | Weejiant 40w/60w Reci 80W/90W/100W/130W/150W |
5 | Power Supply | 220V/50Hz, 110V/12Hz |
6 | Line width | ≤0.15mm |
7 | Positon accuracy | 0.01mm |
8 | Repetition accuracy | 0.02mm |
9 | Cutting speed | 150mm/s |
10 | Guide rail | Hiwin from Taiwan |
11 | Transmission method | Belt Transmission |
12 | Drive system | Leadshine driving system and stepper motor |
13 | Cooling system | Water-cooling |
14 | Control system | DSP off-line |
15 | Control software | Coreldraw, Photoshop, AutoCAD, Tajima |
16 | Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
17 | Working environment | 0-45C, |
18 | Operating Humidity | 5-95% |
19 | Net weight | 800kg |
20 | Gross weight | 850kg |
Samples:
